Stainless steel reactor with heating and cooling jacket

Lead Time:
Quantity(Sets) 1 – 5 6 – 10 11 – 20 >20
Est. Time(days) 40 45 50 To be negotiated
Shipping:
Support Sea freight
Service:
1 Year for machinery warranty|1 Year for Core Components
Category: Tag:
Stainless steel reactor with heating and cooling jacket

Deploying a Stainless steel reactor guarantees rapid thermal dissipation, superior alkali resistance, and broad operational flexibility across chemical processing lines. Synthesizing resins, pigments, fine chemicals, pharmaceutical intermediates,and food products requires complete structural integrity alongside versatile heating and cooling cycles.

Consequently, a Stainless steel reactor operates as a high-performance chemical reaction vessel. By utilizing heavy SS304 or SS316L alloy shells, this equipment provides dependable high-temperature resistance and alkali immunity to support demanding crystallization, polymerization, and mixing processes.

Video Description

00:09

00:12



Product Overview

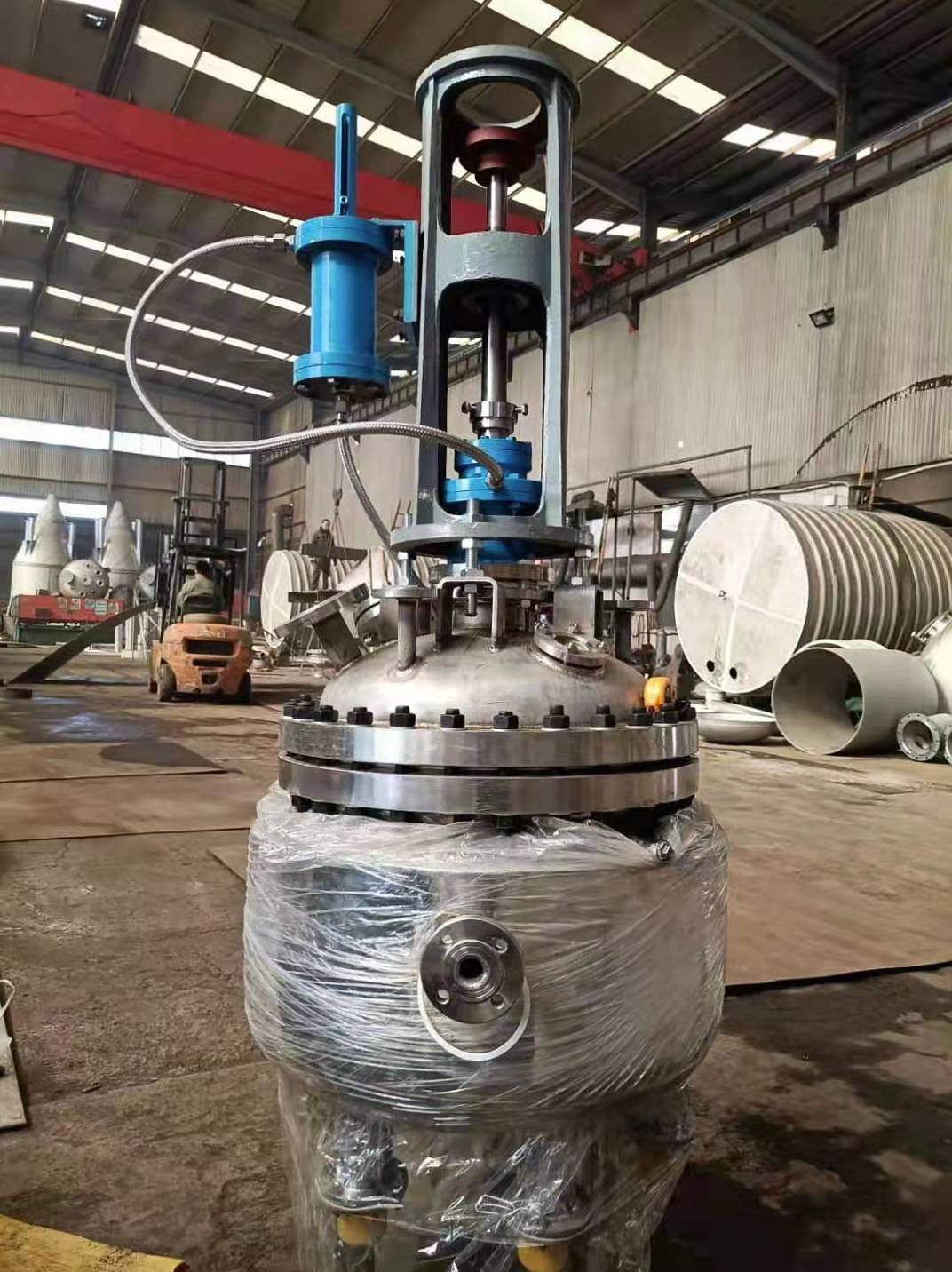

Stainless steel reactor
The stainless steel reactor is widely used in the chemical, pharmaceutical, pigments, resin, food, and other industries, which has the high-temperature resistance and alkali resistance features.

Versatile Heat Exchange Configurations and Drive Assemblies

Engineered stainless steel fabrication and automated mechanical drive assemblies yield essential operational advantages:

  • Flexible Heat Exchange Forms: Supports electric heating, thermal oil circulation, steam heating, and circulating water cooling.

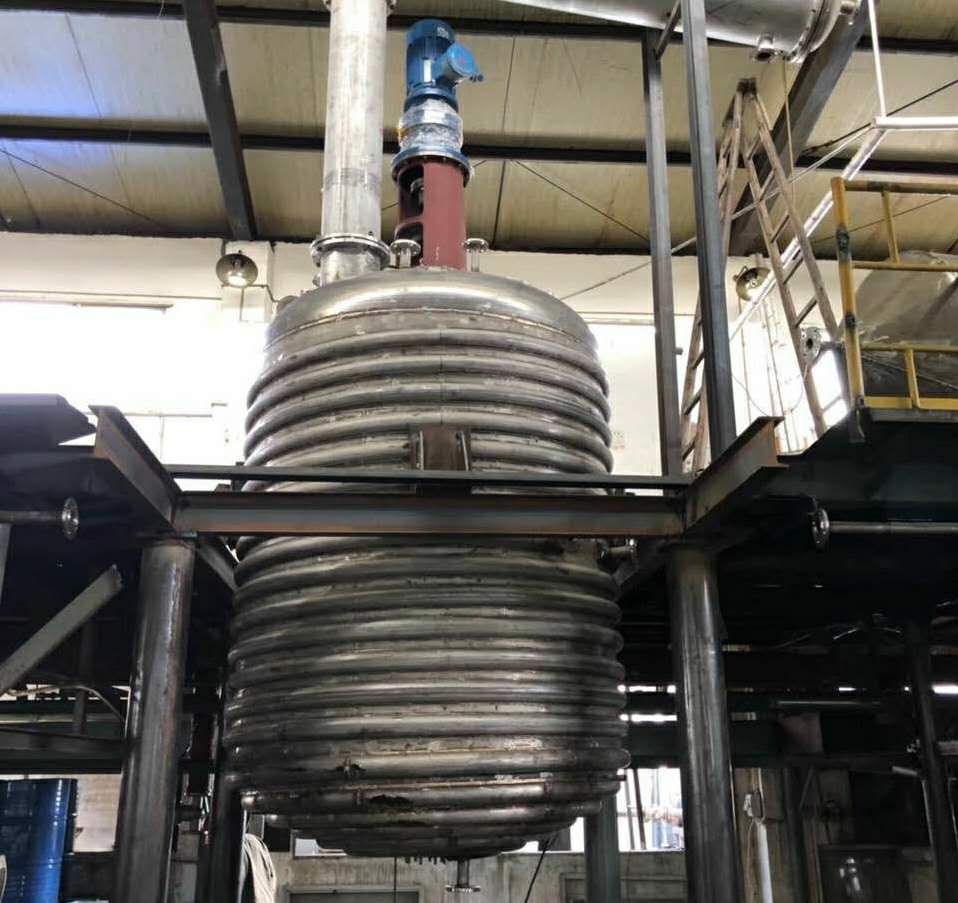

  • Multiple Thermal Structures: Features options for standard external jackets, outer limpet half-pipe coils, or internal cooling tubes.

  • High-Integrity Shaft Sealing: Integrates heavy-duty double mechanical seals to eliminate process leaks during pressurized chemical reactions.

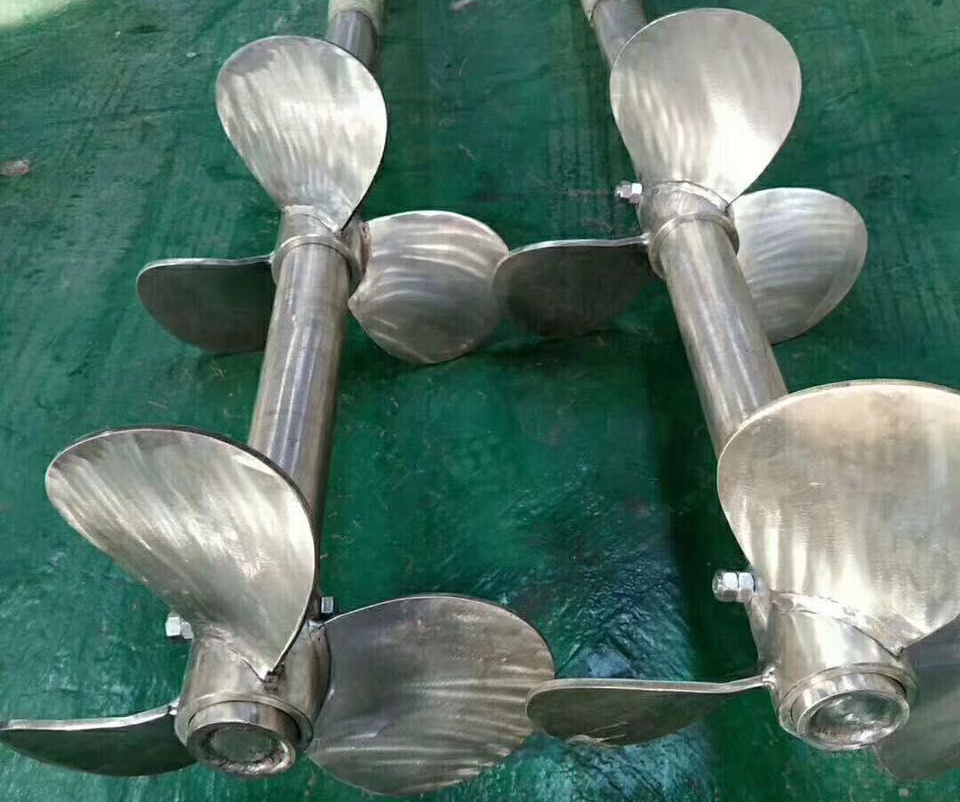

  • Explosion-Proof Agitation Systems: Operates safely using explosion-proof electric motors paired with high-shear turbine type agitators.

Core Technical Specifications and Equipment Parameters

Our factory-certified stainless steel pressure vessels adhere to strict international engineering limits:

Technical Nozzle Parameter Nozzle Standard Specification Functional Nozzle Purpose
Bottom Discharge Hole () DN80 Standard Flanged Port Pure Liquid Product Discharge
Jacket Ports () DN32 Jacketed Connection Thermal Fluid Inlet / Outlet
Handhole Port () DN250 Quick-Access Port Vessel Charging & Inspection
Agitator Drive Hole () DN100 Flanged Drive Port Shaft Drive System Mount
Temperature Port () DN65 Thermowell Port Real-Time Temperature Sensor
Spare Auxiliary Hole () DN125 Spare Flanged Port Auxiliary Addition / Relief
Sight Glass Ports () DN80 Dual Flanged Sight Ports Continuous Visual Monitoring
Vent Port () Threaded Inner Screw Port Process Gas Venting & Inerting
Annual Supply Capacity 1,500 Sets per Year Export Shipping Port Access

Global Shipping, Secure Transit, and On-Site Installation

Exporting heavy industrial chemical equipment worldwide requires reinforced logistics standards:

  • Protective Export Packaging: Teams secure all primary components within heavy-duty steel frames, custom plywood crates, and sealed boxes to prevent transport vibration damage.

  • Simplified Unloading: Steel framing and balanced lifting points allow rapid crane or forklift offloading at customer job sites.

  • Pre-Shipment Inspection: Installers inspect, align, and debug all components before factory dispatch to guarantee seamless startup.

  • Proven Global Deployment: TangLian successfully operates piping systems across large-scale industrial projects in Thailand, India, Russia, and over 37 countries globally.

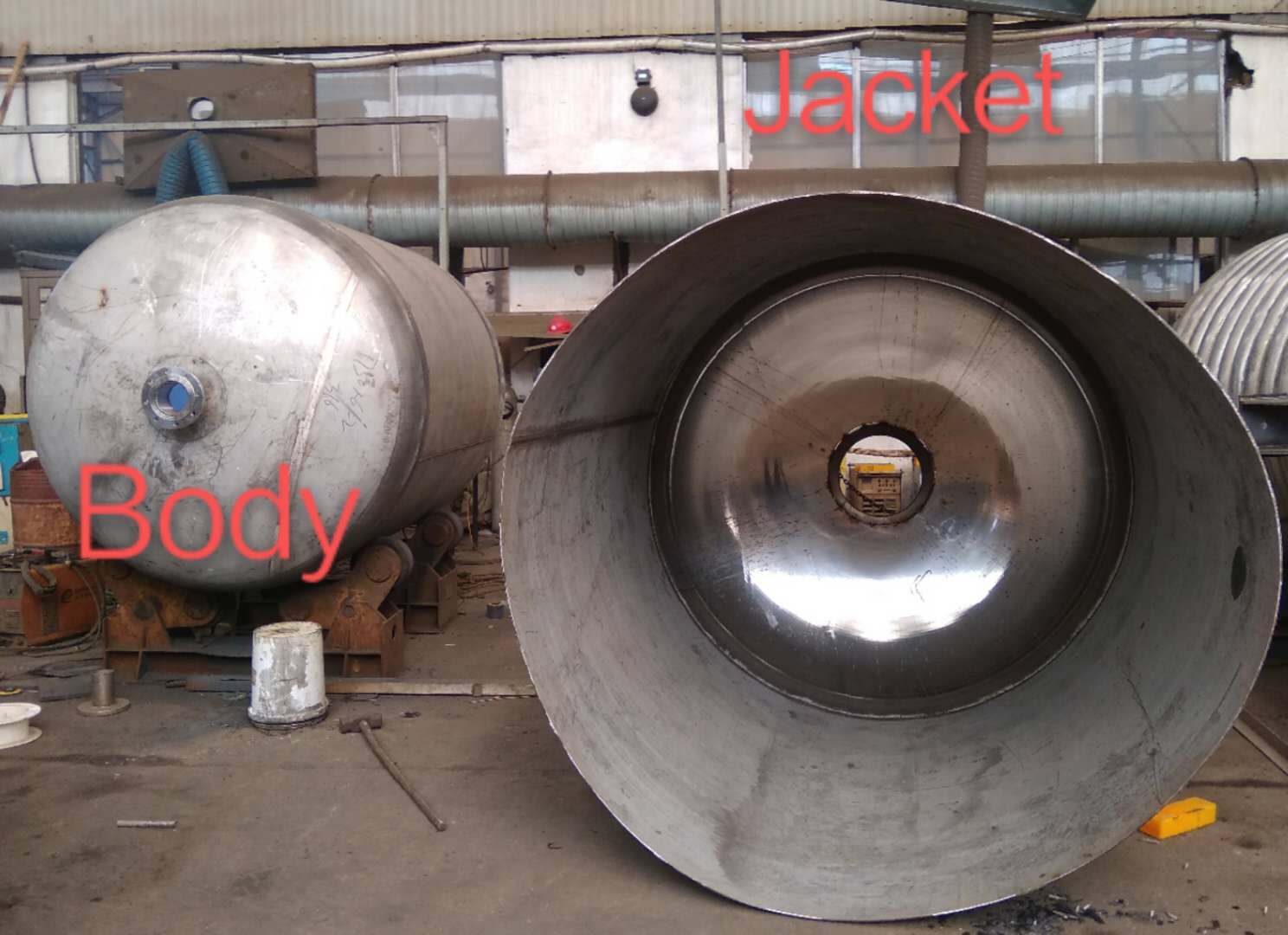

Jacket type

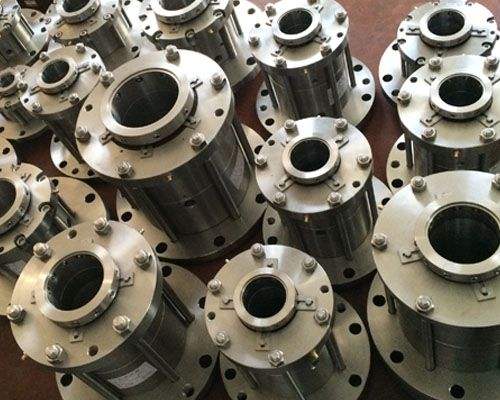

Double mechanical seal

PRODUCT SPECIFICATIONS

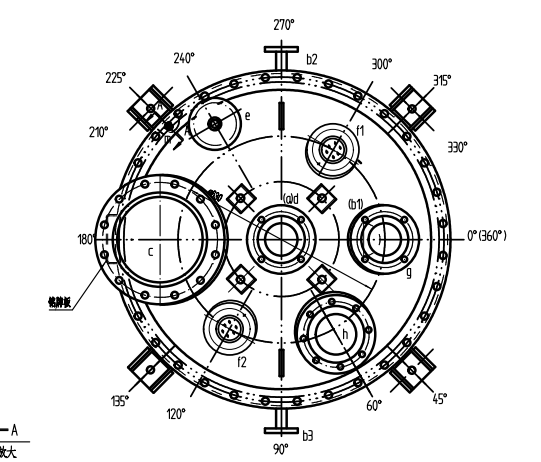

Location of the tank hole

No
Item
Spec.
a
Discharge hole
DN80
b1-3
Jacket inlet and outlet hole
DN32
c
Handhole
DN250
d
Agitator hole
DN100
e
Temperature testing hole
DN65
g
Spare hole
DN125
f1-2
Sight glass hole
DN80
m
Vent hole
Inner screw

PRODUCT CONFIGURATION

Explosion proof motor

Stainless steel mechanical seal

SALES AND SERVICE NETWORK

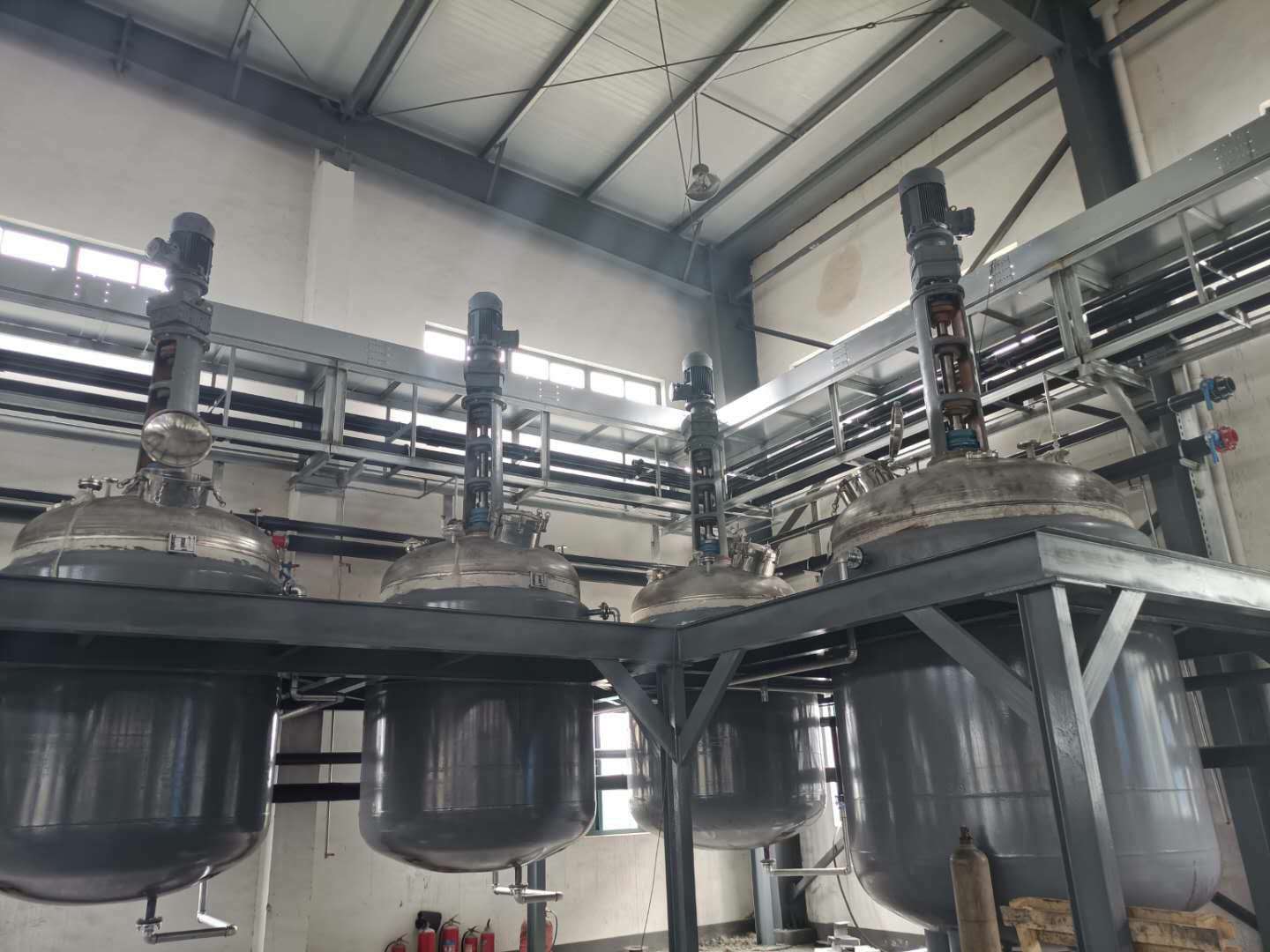

Successful Project

Project in Thailand

Project in India

SIMILAR PRODUCTS

Premier Industrial Equipment Manufacturer in Northern China

Shandong Tanglian Heavy Industry Group Co., Ltd. is located in Zibo, an important modern industrial city in China.The company stands as a premier chemical and pharmaceutical equipment manufacturer in northern China.

The group originated from Shandong Tanglian Chemical Equipment Co., Ltd., which was established in 1998 in Zibo City, the famous hometown of glass lining in China. Today, TangLian operates as an integrated industry and trade enterprise with 7 specialized subsidiaries, serving over 6,000 clients across 37+ countries.

Integrated Industrial Chain and Certified Quality

TangLian operates a complete industrial chain integrating upstream chemical engineering design, core equipment manufacturing, and downstream installation services.

The group holds ISO, SGS, CE, and EU Welder Approval certifications across all product lines. Furthermore, TangLian fabricates stainless steel reactors, glass-lined vessels, fluoropolymer-lined pressure containers, and high-efficiency heat exchangers.

Frequently Asked Questions (FAQ)

Q1: What is your annual factory supply capacity for a Stainless steel reactor?

A1: Our factory maintains a manufacturing supply capacity of approximately 1,500 complete sets per year for standard and customized stainless steel reactors.

Q2: What is your standard manufacturing delivery timeline?

A2: Generally, standard fabrication and delivery require 35 to 45 days after receiving deposit confirmation and approving technical drawings.

Q3: Do you charge extra fees for technical drawings and custom drafting?

A3: No, our engineering department provides technical drafting, customized drawings, and engineering offers completely free of charge.

Q4: How do you handle equipment installation and technical support after delivery?

A4: Before shipment, installers fully assemble and debug all equipment. After arrival, our technical department provides complete online support.
