reactor vessel manufacturer – TangLian Chemistry

Selecting an experienced reactor vessel manufacturer guarantees structural pressure safety, long-term durability, and process reliability across chemical plants. Processing volatile organic solvents, active pharmaceutical intermediates, fine dyes, and aggressive mineral acids requires total chemical inertness, high thermal efficiency, and precise mixing control.

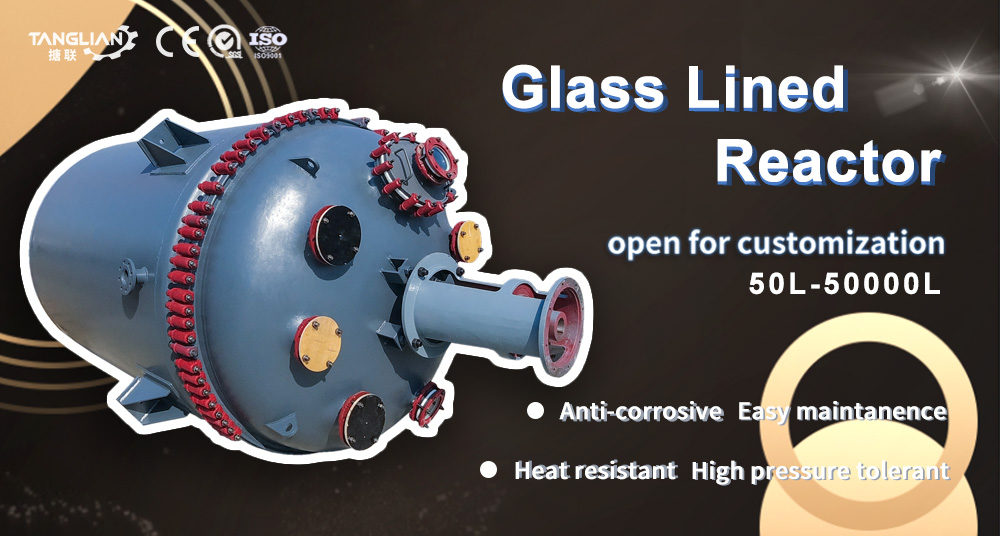

As a leading reactor vessel manufacturer, TangLian designs and fabricates automated chemical reaction systems. By fusing silica-rich enamel glass onto heavy carbon steel pressure shells, our engineered vessels deliver the double advantages of enamel glass chemical stability and metal structural strength.


|
INNER VESSEL
|
JACKET
|
|
|
MATERIAL
|
Carbon Steel with Glass Linning
|
Carbon Steel
|
|
DESIGN PRESSURE
|
-0.1 / 0.6
|
0 / 0.6
|
|
DESIGN TEMPERATURE
|
-19 / 200
|
-19 / 200
|
|
WORKING TEMPERATURE
|
-19 / 200
|
|
|
GLASS LINED THICKNESS
|
0.8-2.0
|
|
|
HIGH VOLTAGE
|
20
|
|
|
RESISTANCE TO SHARP TEMPERATURE VARIATION
|
COOL SHOCK 110,HOT SHOCK 120
|
|

Features and advantages
25 years of production experience, 30000㎡ factory scale, 100 million annual output value, 6000+ cooperative customers, 37+ countries covered.

Precision Control and Automated Processing Workflows
Modern chemical manufacturing relies on tight control over critical operating conditions:
-
Automated Production Workflows: The pre-set production process, including raw material feed, reaction cycles, thermal ramps, and product discharge, operates with high automation.
-
Strict Parameter Regulation: Operators strictly control vital process variables, including internal temperature, vessel pressure, mechanical stirring speed, gas blasting, and material concentration.
-
Integrated Mechanical Assembly: System construction combines a robust kettle body, transmission drive, glass-lined agitator, heating jacket, cooling circuit, and leak-free mechanical seals.
Structural Configurations: Closed CE Type vs. Open Vessels
Evaluating structural geometry determines the optimal vessel architecture for process lines:
-

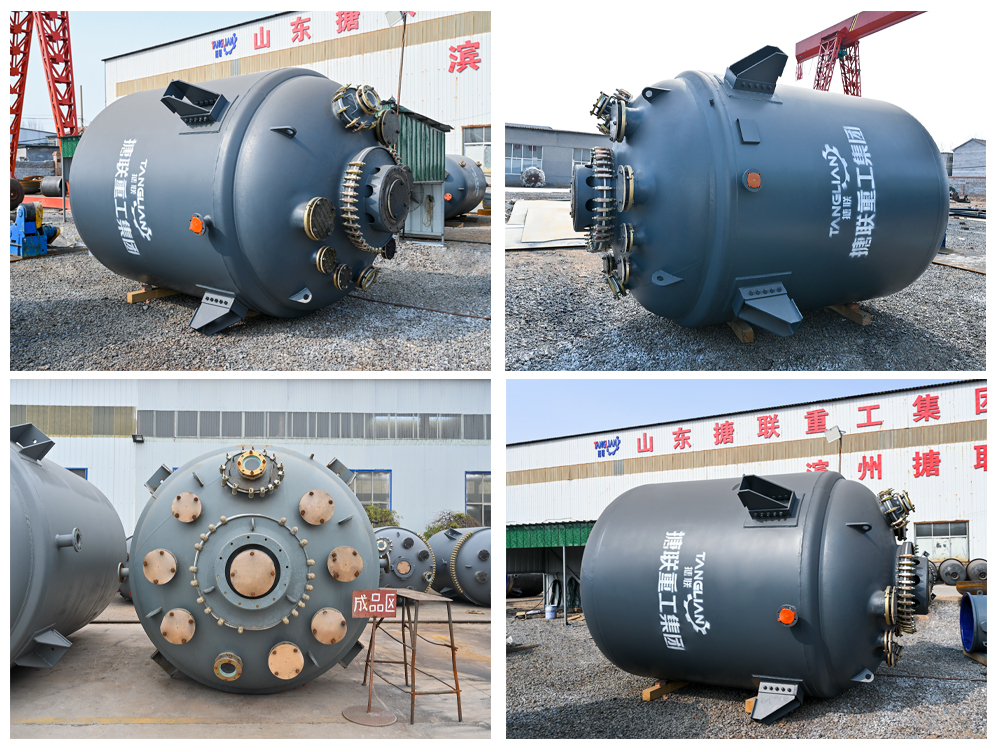

CE Type Closed Reactor: Features a one-piece welded head and body structure. This monoblock design provides superior sealing performance under high operating pressures and full vacuum conditions.
-
Open Glass Lined Reactor: Features a separable top cover bolted directly to the tank body. Consequently, it allows larger agitator installations and easier internal maintenance access.
-
Zero Metallic Contamination: Smooth silica enamel surfaces prevent metal ions from leaching into reactive media, preserving product purity and batch clarity.
Core Technical Specifications and Performance Limits
Our factory-certified reaction vessels adhere to strict international engineering limits:
-
Enamel Layer Coating Thickness: to high-silica glass enamel lining.
-
High-Voltage Insulation Testing: non-destructive testing at DC high-frequency spark.
-
Thermal Shock Resistance Limits: Cool shock differential resistance is ; hot shock differential reaches .
Broad Industrial Applications and Reaction Capabilities
Versatile glass lining properties make partnering with a certified reactor vessel manufacturer essential across diverse processing sectors:
-
Widespread Industrial Uses: Widely applied in chemical processing, petroleum refining, pharmaceutical synthesis, pesticide production, dye manufacturing, and food processing.
-
Ideal Unit Operations: Serves as high-efficiency equipment for hydrolysis, neutralization, crystallization, mass mixing, and liquid emulsification.
-
Proven Manufacturing Footprint: Backed by 25 years of production experience, a plant facility, and verified service across countries worldwide.

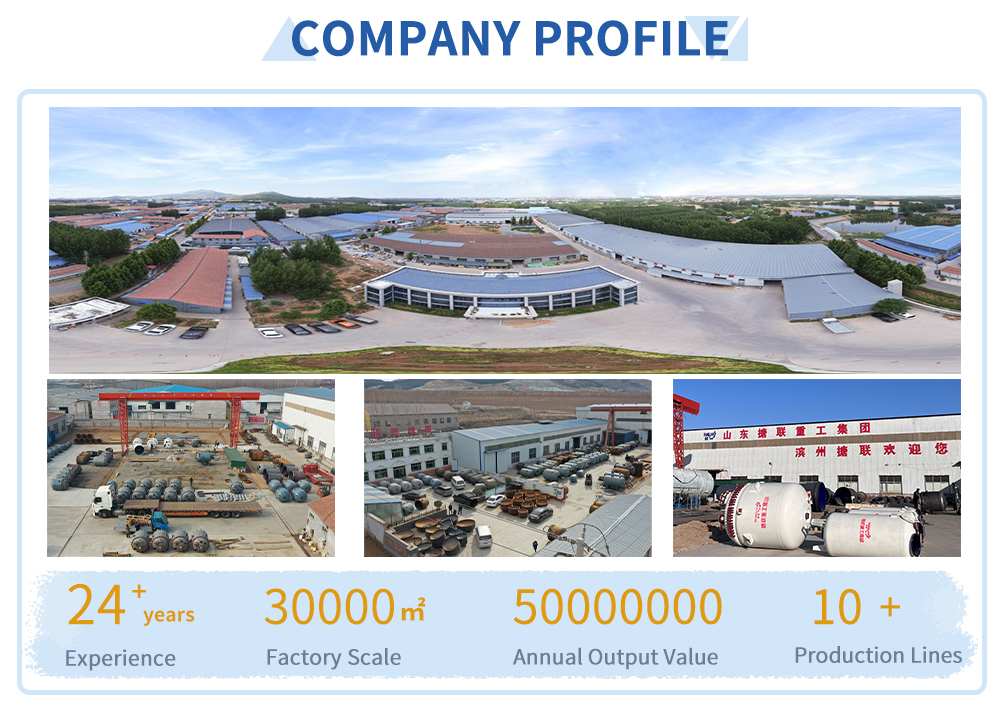

Leading Chemical Equipment Manufacturer in Northern China
Shandong Tanglian Heavy Industry Group Co., Ltd. is located in Zibo, an important modern industrial city in China. The company stands as a premier pharmaceutical and chemical equipment manufacturer in northern China.
The group originated from Shandong Tanglian Chemical Equipment Co., Ltd., which was established in 1998 in Zibo City, the famous hometown of glass lining in China. Today, TangLian operates as an integrated industry and trade enterprise with 7 specialized subsidiaries, serving over 6,000 clients globally.
Integrated Industrial Chain and Certified Quality
TangLian operates a complete industrial chain integrating upstream chemical engineering design, core equipment manufacturing, and downstream installation services.
The group holds ISO, SGS, CE, and EU Welder Approval certifications across all product lines. Furthermore, TangLian fabricates high-durability pressure vessels, glass-lined reactors, PTFE/PFA lined equipment, and stainless steel systems.
Shandong Tanglian Heavy Industrial Group , one of the longest established factories for Chemical reactors / Chemical vessels in China .
We have ISO , SGS , CE ,EU Welder Approval Test Certificate for our company , products and workers .
We mainly focus on below products
Chemical reactor , Storage / Receiving / Buffer tank
Column / Tower section , Pipe line
Heat exchanger / condenser , Evaporator
Main material of our equipment :
Glass Lining , PTFE,ETFE,PFA Lining
Stainless Steel , Carbon Steel , Hastelloy , DP Steel


Frequently Asked Questions (FAQ)
Q1: Are you a real factory?
A1: Yes. Shandong Tanglian Heavy Industry Group is an established manufacturing enterprise with over 20 years of history producing glass-lined and stainless steel pressure vessels.
Q2: What is your annual equipment manufacturing output?
A2: Our annual production capacity reaches approximately 1,500 complete sets of chemical equipment per year.
Q3: What quality warranty coverage do you provide?
A3: We perform strict non-destructive quality inspections before loading. Furthermore, we provide a full one-year quality warranty under correct operating conditions.
Q4: What is your minimum order quantity (MOQ) and delivery timeline?
A4: Our minimum order quantity is 1 set. Standard fabrication and delivery times range between 30 and 60 days to the port of departure.
