PTFE Lined Mixing Tank Reactor：
Owing to its low friction, PTFE is used for plain bearings, gears, slide plates, seals, gaskets,bushings and more applications with sliding action of parts, where it outperforms acetal and nylon.
Besides, as one kind of anti corrosive material, PTFE is mainly used lined layer on steel chemical equipment.The tight lining PTFE that has been activated or bonded with a glass fiber cloth with coating by adhesive. At the same time, the steel shell of the equipment is sandblasted and cleaned, painted adhesion. Then the PTFE plate is bonded to the steel body through original vacuum lining technology, PTFE Lined Mixing Tank Reactor can resist negative pressure up to – 0.095Mpa.
As one of special chemical condition, hot concentrated hydrogen fluoride (HF) solution and hydrochloric acid are highly corrosive, fluorine-containing polymer will be the high corrosive flowing material in tank. Now, (PTFE Lined Mixing Tank Reactor) one kind of experience reactor that glass-lined layer coate by PTFE option is used on this condition. PTFE make up for the defect of glass-lined resistant fluoride, inner glass lined layer as mainly anti corrosive layer, keeps longer using life because of PTFE.
|

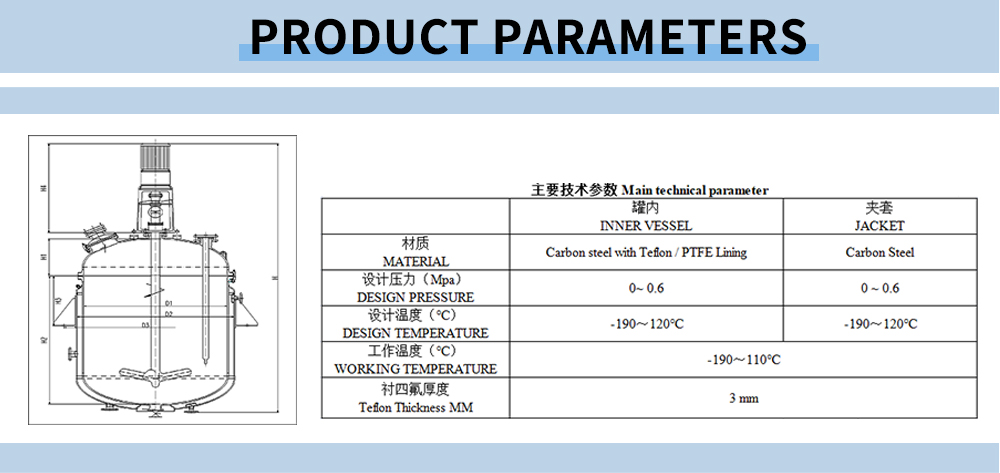

Main technical parameter
|
||
|
|
INNER VESSEL
|
JACKET
|
|
MATERIAL
|
Carbon Steel With Teflon/PTEF Lining
|
Carbon Steel
|
|
DESIGN PRESSURE
|
0~0.6
|
0~0.6
|
|
DESIGN TEMPERATURE
|
-190~120℃
|
-190~120℃
|
|
WORKING TEMPERATURE
|
-190~110℃
|
|
|
Teflon THICKNESS MM
|
3mm
|
|
Product Introduction
Features and advantages
25 years of production experience, 30000㎡ factory scale, 100 million annual output value, 6000+ cooperative customers, 37+ countries covered.
·Clean, high temperature and corrosion resistance ·Smooth and glossy surface, low friction coefficient, not easy to peel off
·excellent penetration resistance
1.Products can be customized to meet customers’ needs in the aspects of structural design, function, capacity, and various working conditions ,etc.
2.A series of examinations will be taken before the final fabrication of the product are ready to put into batch production,inspection can be made any time before the final fabrication is ready.
3.We will provide instant service from the design drawings to after sales constantly upon the feedback from users.
4.The desgin department provide professional drawings for evaluating feasibility and practicability in the perspective of users.

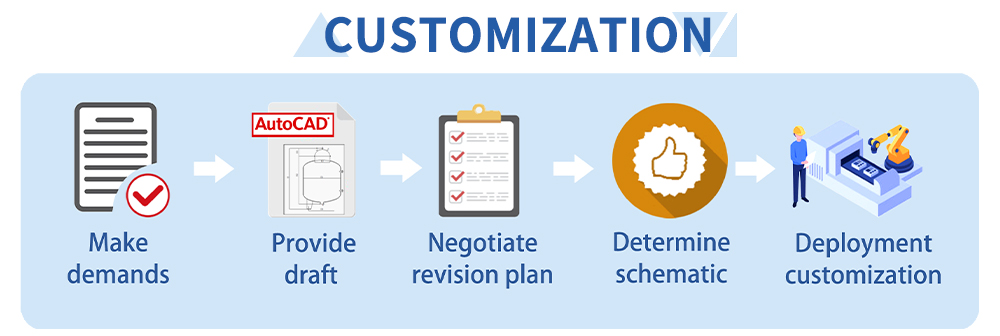

CUSTOMIZATION
1.Products can be customized to meet customers’ needs in the aspects of structural design, function, capacity, and various working conditions ,etc.
2.A series of examinations will be taken before the final fabrication of the product are ready to put into batch production,inspection can be made any time before the final fabrication is ready.
3.We will provide instant service from the design drawings to after sales constantly upon the feedback from users.
4.The desgin department provide professional drawings for evaluating feasibility and practicability in the perspective of users.
Advantage
reactor can be widely used in chemical, petroleum, pharmaceutical, pesticide, food, dye and other industrial production processes.
It is an ideal equipment for hydrolysis, neutralization, crystallization, mixing, emulsification, etc.
Company Profile
Shandong Tanglian Heavy Industry Group Co., Ltd. is located in Zibo, an important modern industrial city in China. It is a well-known chemical and pharmaceutical equipment manufacturer in northern China. Shandong Tanglian Heavy Industry Group originated from Shandong Tanglian Chemical Equipment Co., Ltd., which was established in 1998 in Zibo City, the famous hometown of glass lining in China.
At present, the group branches Shandong Tanglian Chemical Equipment Co., Ltd., Binzhou Tanglian Chemical Machinery Co., Ltd., Shandong Tanglian Metal Products Co., Ltd., Shandong Tanglian Engineering Design Co., Ltd. and other subsidiaries. Shandong Tanglian Group now develops into a complete industrial chain integrating upstream chemical engineering design, equipment manufacturing and downstream installation and maintenance. The company has more than 20 years of experience in the production and design of various equipment such as chemical and pharmaceutical industries. Through continuous technology accumulation, it has developed related process packages and provided process design and equipment manufacturing services for thousands of domestic and foreign companies. The industry-related technologies have distinctive features,the advantages are obvious.
The group starts from the advantages with the basic principle of perfecting the global market service, plays an important role.
Shandong Tanglian Heavy Industrial Group , one of the longest established factories for Chemical reactors / Chemical vessels in China .
We have ISO , SGS , CE ,EU Welder Approval Test Certificate for our company , products and workers .
We mainly focus on below products
Chemical reactor , Storage / Receiving / Buffer tank
Column / Tower section , Pipe line
Heat exchanger / condenser , Evaporator
Main material of our equipment :
Glass Lining , PTFE,ETFE,PFA Lining
Stainless Steel , Carbon Steel , Hastelloy , DP Steel
FAQ
A1: Tanglian Heavy Industry Group Co., Ltd. is an integrated industry and trade enterprise with 7 subsidiaries under its
jurisdiction. It has the business capabilities of design, manufacturing, trade integration, and independent import and export.Q2: Will there be any guarantee if I buy from you?
A2: We promise to provide a one-year warranty (from the date of delivery) for all products we currently sell. If the parts worn out during the warranty period are damaged (not caused by mishandling), we will provide you with new parts free of charge.Q3: Do you provide installation guidance or other after-sales service?
A3: Yes, of course. Installation drawings and installation manuals are provided. If you are still unable to assemble, we will
arrange for our engineers to help you with voice or video contact.Q4: What are the payment methods and terms you accept?
A4: The payment methods we accept include: T/T, L/C, D/P; after signing the contract, the customer needs to pay 30% of the deposit
first, and the remaining 70% of the payment is completed in the delivery money.Q5: What is your delivery time?
A5: We can arrange FOB, CIF shipping methods. Usually, the delivery time for one device is 45 to 50 days, depending on the shipping method.Q6: How do you pack and ship the equipment?
A6: We offer sea, rail or combined transportation. At the same time, we also provide LCL (LCL), Full Container (FCL), Flat Rack (FR), Bulk and Express to ensure that the goods are safe and free from damage.
