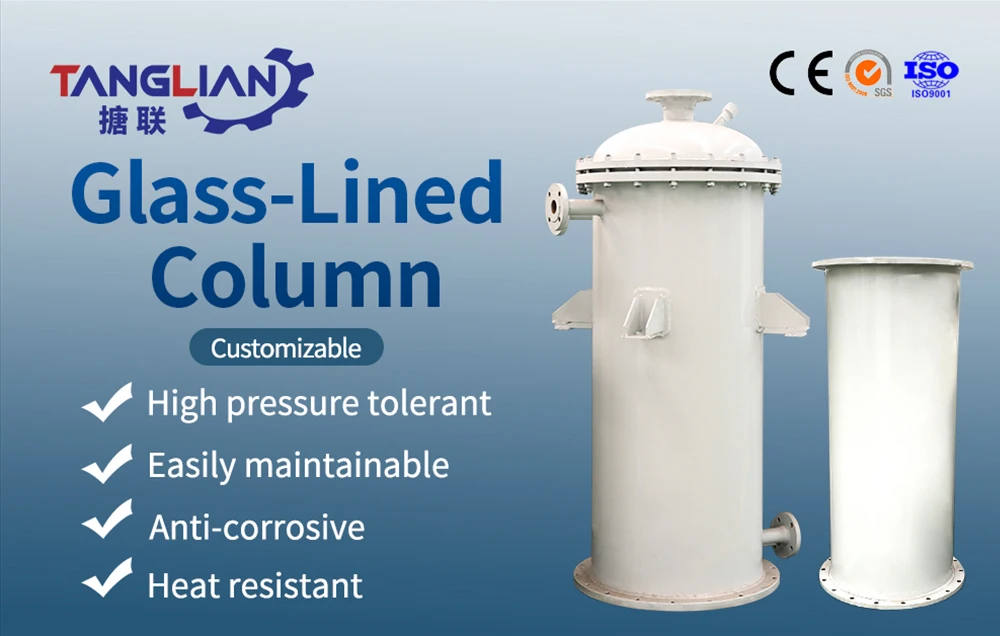

Glass Lined Tower – TangLian Chemistry
|
INNER VESSEL
|
JACKET（OPTIONAL)
|
|
|
MATERIAL
|
Carbon Steel with Glass Linning
|
Carbon Steel
|
|
DESIGN PRESSURE（Mpa）
|
0 / 1.0
|
0 / 1.0
|
|
DESIGN TEMPERATURE（℃）
|
0/200
|
0/200
|
|
GLASS LINED THICKNESS（mm）
|
0.8-2.0
|
|
|
HIGH VOLTAGE（Kv）
|
20
|
|
|
RESISTANCE TO SHARP TEMPERATURE VARIATION（℃）
|
COOL SHOCK 110，HOT SHOCK 120
|
|
Features at a glance:
1. Glass-lined tower sections of DN25~DN2000 can be produced (the length of DN250 and below is generally within 3000mm; the length of DN300 and above can reach 4000mm).
2. All glass-lined tower caps adopt the cold spraying process uniformly.
3. Both ends of the nozzle adopt neck flanges, and the welding seam is far away from the flange mouth.
Features and advantages
25 years of production experience, 30000㎡ factory scale, 100 million annual output value, 6000+ cooperative customers, 37+ countries covered.
Has excellent corrosion resistance without affecting the purity, flavor, or color of stored substances
Chemical tanks for sale technology Applicable media: Various concentrations of inorganic acids, organic acids, organic solvents, and weakly alkaline solvents
Company Profile
Shandong Tanglian Heavy Industry Group Co., Ltd. is located in Zibo, an important modern industrial city in China. It is a well-known chemical and pharmaceutical equipment manufacturer in northern China. Shandong Tanglian Heavy Industry Group originated from Shandong Tanglian Chemical Equipment Co., Ltd., which was established in 1998 in Zibo City, the famous hometown of glass lining in China.
At present, the group branches Shandong Tanglian Chemical Equipment Co., Ltd., Binzhou Tanglian Chemical Machinery Co., Ltd., Shandong Tanglian Metal Products Co., Ltd., Shandong Tanglian Engineering Design Co., Ltd. and other subsidiaries. Shandong Tanglian Group now develops into a complete industrial chain integrating upstream chemical engineering design, equipment manufacturing and downstream installation and maintenance. The company has more than 20 years of experience in the production and design of various equipment such as chemical and pharmaceutical industries. Through continuous technology accumulation, it has developed related process packages and provided process design and equipment manufacturing services for thousands of domestic and foreign companies. The industry-related technologies have distinctive features,the advantages are obvious.
The group starts from the advantages with the basic principle of perfecting the global market service, plays an important role.
Shandong Tanglian Heavy Industrial Group , one of the longest established factories for Chemical reactors / Chemical vessels in China .
We have ISO , SGS , CE ,EU Welder Approval Test Certificate for our company , products and workers .
We mainly focus on below products
Chemical reactor , Storage / Receiving / Buffer tank
Column / Tower section , Pipe line
Heat exchanger / condenser , Evaporator
Main material of our equipment :
Glass Lining , PTFE,ETFE,PFA Lining
Stainless Steel , Carbon Steel , Hastelloy , DP Steel
FAQ
Reply: Yeah. we are a real factory of glass lined enquipment and stainless steel equipment. And our factory have over 20 years history. Welcome anytime.
Reply: 1500sets per year.
Reply: We have strict inspection for the equipment before loading, and have one year quality warranty if the customers use the goods under the correct operation.
Reply:
01 MOQ: 1set
02 Delivery time in accordance with the production time,30-60 days to the port of departure.
