3 cubic meter stainless steel laboratory chemical high pressure stirred autoclave

Model Number:
K-type, F-type, RF/CE
Lead Time:
Quantity(Sets) 1 – 5 6 – 10 11 – 20 >20
Est. Time(days) 40 45 50 To be negotiated
Customization:
Customized logo(Min. Order: 1 Sets)
Customized packaging(Min. Order: 1 Sets)
Graphic customization(Min. Order: 1 Sets)
Service:
1 Year for machinery warranty|1 Year for Core Components
3 cubic meter stainless steel laboratory chemical high pressure stirred autoclave – TangLian Chemistry

Deploying a 3 cubic meter stainless steel laboratory chemical high pressure stirred autoclave guarantees precise thermal control, hermetic pressure containment, and quiet magnetic transmission across high-pressure chemical synthesis lines. Conducting pilot-scale chemical reactions, catalytic hydrogenation, and high-pressure organic synthesis requires complete fluid isolation alongside reliable digital temperature regulation.

Consequently, a 3 cubic meter stainless steel laboratory chemical high pressure stirred autoclave operates as a high-capacity, high-performance pressure reaction vessel. By combining static magnetic drive couplings with intelligent PID temperature controllers, this equipment eliminates mechanical shaft leakage under extreme working pressures from −0.1 MPa to 100 MPa and operating temperatures from −196∘C to 500∘C.

Laboratory Reactor

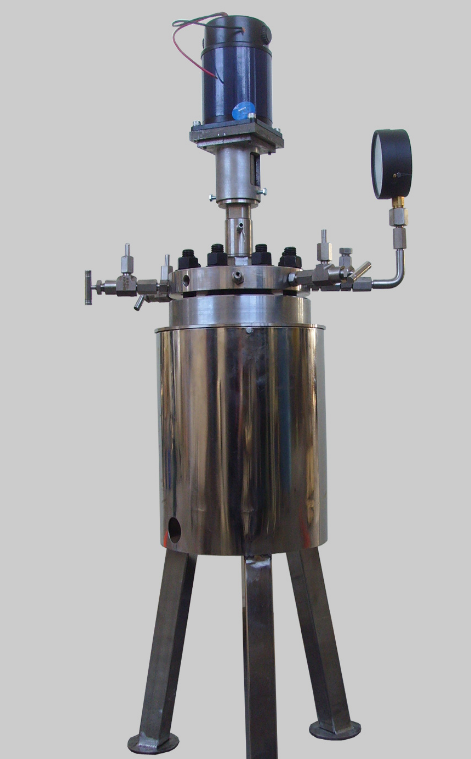

The small laboratory reactor has small volume, simple and reliable structure, and digital display of temperature setting , It is equipped with miniature DC motor, pressure gauge, explosion-proof device, intake valve, sampling valve, temperature probe, which can easily realize the micro reaction experiment.

Advanced Static Magnetic Drive and Thermal Heating Capabilities

Proprietary magnetic couplings and versatile heating modules yield key processing advantages:

  • Leak-Free Static Magnetic Sealing: Eliminates traditional mechanical seal wear to maintain zero gas leakage under high-pressure gas-liquid reactions.

  • Versatile Heating Methods: Supports resistance furnace heating, far-infrared radiation, electric jacket oil heating, thermal circulation jackets, and electromagnetic induction.

  • Quiet Variable Agitation: Operates smoothly between 0 rpm and 750 rpm using miniature DC or explosion-proof motors (123W to 750W).

  • Intelligent PID Control: Adjusts temperature parameters automatically via digital control interfaces and precision thermowell probes.

Core Technical Specifications and Equipment Parameters

Our factory-certified high-pressure autoclave pressure vessels adhere to strict international engineering limits:

Technical Parameter Engineering Standard Specification
Nominal Working Capacity () High-Pressure Autoclave Capacity
Design Pressure Operating Limits Full Vacuum up to High Pressure
Design Operating Temperature Extreme Deep Freeze up to Thermal Limit
Stirring Speed & Drive to Drive with – Motor
Head Configuration Options Quick-Open Flange Cover or Bolted Heavy Flange Type
Internal Cooling Coils High-Efficiency U-Type or Serpent Snake Plate Coil
Monthly Factory Supply Ability 30 Sets per Month ()
Export Shipping Ports Qingdao, Shenzhen, Shanghai

Water heating or cooling

Oil heating or cooling

PRODUCT SPECIFICATIONS

Agitator type
Paddle/Impeller/Frame/Turbine/Anchor(According to clients requirements)
Motor power
123W/185W/355W/750W
Heating type
Resistance furnace heating,  far-infrared heating,  jacket heat conduction oil electric heating,  jacket circulation heating,  electromagnetic induction heating
Head type
Quick open type/Flange type
Cooling coil
U type/Snack plate type
Basic mouth configuration
Air inlet hole, vebt hole, solid inlet hole, inner coil inlet and outlet hole, pressure hole, temperature hole, liquid hole
Voltage
220V/380V/440V
Discharge valve
Exhibition valve/ ball valve/ wire plug
Controller
PID intelligent controller, automatically adjust temperature control parameters

PRODUCT CONFIGURATION

Explosion proof motor

Tank mouth

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Global Shipping, Secure Transit, and On-Site Installation

Exporting high-precision laboratory reaction vessels worldwide requires reinforced logistics standards:

  • Protective Export Packaging: Teams secure all primary components within heavy-duty steel frames, custom plywood crates, and sealed boxes to prevent transport vibration damage.

  • Simplified Unloading: Steel framing and balanced lifting points allow rapid crane or forklift offloading at customer job sites.

  • Pre-Shipment Calibration: Installers inspect, pressure-test, and debug all components before factory dispatch to guarantee seamless startup.

  • Proven Global Deployment: TangLian successfully operates laboratory reactors across large-scale projects in Thailand, India, Russia, and over 37 countries globally.

Premier Industrial Equipment Manufacturer in Northern China

Shandong Tanglian Heavy Industry Group Co., Ltd. is located in Zibo, an important modern industrial city in China.The company stands as a premier chemical and pharmaceutical equipment manufacturer in northern China.

The group originated from Shandong Tanglian Chemical Equipment Co., Ltd., which was established in 1998 in Zibo City, the famous hometown of glass lining in China. Today, TangLian operates as an integrated industry and trade enterprise with 7 specialized subsidiaries, serving over 6,000 clients across 37+ countries.

Integrated Industrial Chain and Certified Quality

TangLian operates a complete industrial chain integrating upstream chemical engineering design, core equipment manufacturing, and downstream installation services.

The group holds ISO, SGS, CE, and EU Welder Approval certifications across all product lines. Furthermore, TangLian fabricates high-pressure autoclaves, glass-lined vessels, stainless steel pressure containers, and high-efficiency heat exchangers.

Frequently Asked Questions (FAQ)

Q1: What is your monthly factory supply capacity for a 3 cubic meter stainless steel laboratory chemical high pressure stirred autoclave?

A1: Our factory maintains a manufacturing supply capacity of approximately 30 complete sets per month for standard and customized autoclave units.

Q2: What is your standard manufacturing delivery timeline?

A2: Generally, standard fabrication and delivery require 35 to 45 days after receiving deposit confirmation and approving technical drawings.

Q3: Do you charge extra fees for technical drawings and custom drafting?

A3: No, our engineering department provides technical drafting, customized drawings, and engineering offers completely free of charge.

Q4: How do you handle equipment installation and technical support after delivery?

A4: Before shipment, installers fully assemble and debug all equipment. After arrival, our technical department provides complete online support.
